Surface-mount power inductors Backlight Inductors DO1607B-105ML /
DO1607B-155ML / DO1607B-225ML
Characteristics
- Open magnetic flux path
- High saturation current ratings
- High energy storage
- Industry standard footprint
The low profile DO1607B Series has the high breakdown
voltage ratings required for backlight applications. Only
2,49 mm high, they have a footprint of 6,6 × 4,5 mm.
These inductors are constructed of high temperature materials that
provide excellent heat deflection to prevent
damage during solder reflow.
Electrical Properties:
| Part number | L ±20% (mH) | DCR max (Ohms) | Insulation core-winding (MOhms) | Isat (mA) | Irms (mA) |
| DO1607B-105ML | 1.0 | 19 | >10 | 100 | 150 |
| DO1607B-155ML | 1.5 | 21 | >10 | 75 | 140 |
| DO1607B-225ML | 2.2 | 42 | >10 | 60 | 100 |
| DO1607B-335ML | 3.3 | 52 | >10 | 50 | 90 |
| DO1607B-475ML | 4.7 | 80 | >10 | 45 | 75 |
| DO1607B-685ML | 6.8 | 125 | >10 | 40 | 60 |

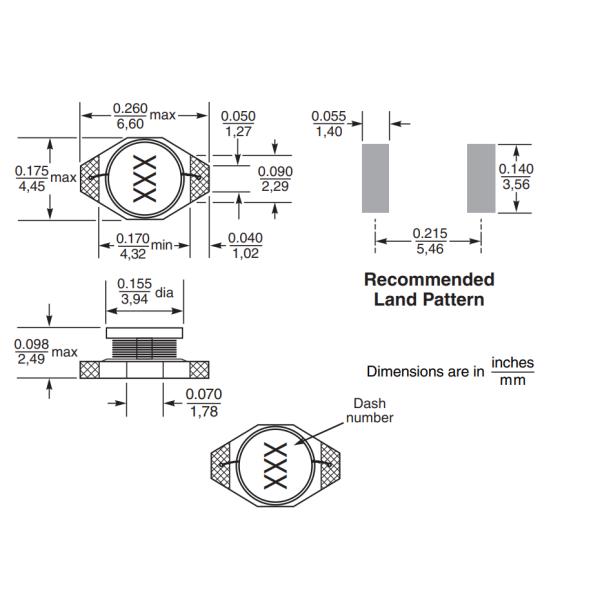

Shape and Dimensions:
Product picture:
Surface-mount power inductors Backlight Inductors DO1607B-105ML /
DO1607B-155ML / DO1607B-225ML
