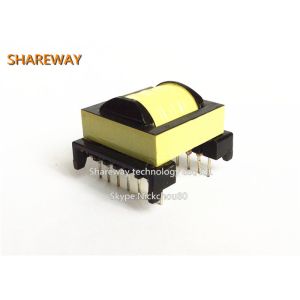

    Ferrite core GA3172-AL SMPS Flyback Transformer for Isolated AC LED driver

    Ask Lasest Price
    Brand Name : Shareway
    Model Number : GA3172-AL
    Certification : CE UL RoHS ISO9001:2008
    Price : Supportive
    Payment Terms : TT,Paypal
    Supply Ability : 3000K.PCS/Month
    Delivery Time : Stock or 3 weeks
    • Product Details
    • Company Profile

    Ferrite core GA3172-AL SMPS Flyback Transformer for Isolated AC LED driver

    Ferrite core GA3172-AL Transformer for Isolated AC LED driver


    Description:

    • Developed specifically for Microchip Technology’s
    Isolated AC LED driver to operate with PIC16HV785 CMOS
    Microcontroller and MCP1402 Gate Driver
    • Universal ac input; 20 V, 0.7 A output; Operates at 125 kHz
    • 3000 Vrms, one minute isolation from the primary and bias
    to the secondary winding
    • Bias winding supplies 12 V to power the microprocessor


    Core material Ferrite
    Terminations RoHS tin-silver over tin over copper clad steel. Other
    terminations available at additional cost.
    Weight 11.7 g
    Ambient temperature –40°C to +85°C
    Storage temperature Component: –40°C to +85°C.
    Packaging: –40°C to +80°C
    Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
    85% relative humidity)


    Part

    number

    Power

    (W)

    L at 0 A

    ±10%

    (μH)

    L at Ipk

    min

    (μH)

    DCR max (Ohms)

    Leakage L

    max (μH)

    Turns ratio

    Ipk

    (A)

    Output
    prisecbiaspri : secpri : bias
    GA3172-AL145004500.6750.2450.3258.251 : 0.2141 : 0.1310.7820 V, 0.7 A230

    Ferrite core GA3172-AL Transformer for Isolated AC LED driver


    Shape and Dimensions:
