    Bobbin - Wound SMD Shielded Power Inductor Surface Mounting For Computers

    Ask Lasest Price
    Brand Name : Shareway
    Model Number : 29102C
    Certification : RoHS,CE,UL
    Price : Supportive
    Payment Terms : TT,Paypal,West Union
    Supply Ability : 1kk-pcs/month
    Delivery Time : Stock Or 3 weeks
    • Product Details
    • Company Profile

    Bobbin - Wound SMD Shielded Power Inductor Surface Mounting For Computers

    29102C Low profile bobbin-wound shielded inductors for computers


    Description:

    • FEATURES
    • RoHS compliant
    • Low profile
    • Surface mount
    • Inductance range from 1.0μH to 1.0mH
    • Tape & reel
    • UL 94V-0 materials
    • J-STD-020D.1 reflow

    Inductance (10kHz, 0.1VAC)Inductance (10kHz, 0.1VAC)Idc2Rdc
    Nom.Min. – Max.Max.Max.
    Part No.μHμHA
    29102C1.00.70 – 1.306.016
    29152C1.51.05 – 1.955.518
    29222C2.21.54 – 2.865.020
    29332C3.32.31 – 4.294.028
    29472C4.73.29 – 6.112.330
    29682C6.84.76 – 8.842.140
    29103C108.0 – 12.01.845
    29153C1512.0 – 18.01.565
    29223C2217.6 – 26.41.285
    29333C3326.4 – 39.61.0120
    29473C4737.6 – 56.4850mA170
    29683C6854.4 – 81.6650mA250
    29104C10080.0 – 120530mA360
    29154C150120 – 180530mA500
    29224C220176 – 264380mA760
    29334C330264 – 396320mA1000
    29474C470376 – 564260mA1600
    29684C680544 – 816210mA2400
    29105C1000800 – 1200180mA4100

    ABSOLUTE MAXIMUM RATINGS
    Operating free air temperature range-40°C to 85°C
    Storage temperature range-40°C to 125°C

    SOLDERING INFORMATION
    Peak reflow solder temperature250˚C
    Pin finishTin
    Moisture sensitivity level1

    Dimensions:

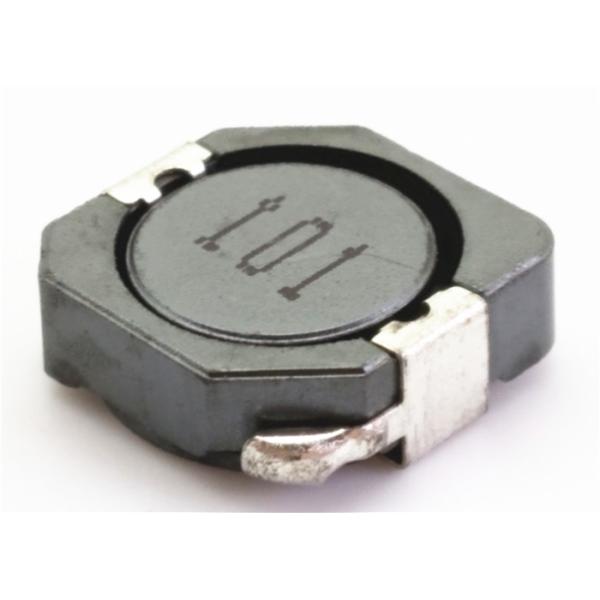

    Quality Bobbin - Wound SMD Shielded Power Inductor Surface Mounting For Computers for sale
