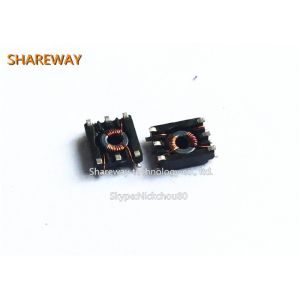

S3126-XNL is a pin-to-pin alternative to the EPC3126-1-LF Surface Mount Push-Pull Low Power Transformer, Designed for use
with MAXIM MAX253/845 IC
Push-Pull Low Power Transformer
- Designed for use with Maxim MAX 253/ 845
- PFA Insulation ( Triple Insulated Wire)
- Used in SMPS Push-Pull Topology
- Operating temperature:-40 ℃~+85℃
- Switching Frequency: 250 kHz-1 MHz
- 6 Pin SMD Package
- Up to 1 Watt
Product detail
| Shareway Part Number | Trader Part Number | Topology | Geometry | Turns Ratio | Output Power | Primary Inductance/uH | Vin/V | Aux | S1 | Fsw/KHz | Chipset |
| S3126-1NL | EPC3126-1-LF | Push-Pull | Toroidal | Pri:Aux:S1:S2:S3=1CT:2CT | 0 | 500 | 3.3 | | 15V | 250 | Maxim MAX253/845 |
| S3126-2NL | EPC3126-2-LF | Push-Pull | Toroidal | Pri:Aux:S1:S2:S3=1CT:1.3CT | 0 | 500 | 5 | | 5V | 250 | Maxim MAX253/845 |
| S3126-3NL | EPC3126-3-LF | Push-Pull | Toroidal | Pri:Aux:S1:S2:S3=1CT:2.6CT | 0 | 500 | 5 | | 10V | 250 | Maxim MAX253/845 |
| S3126-4NL | EPC3126-4-LF | Push-Pull | Toroidal | Pri:Aux:S1:S2:S3=1CT:3CT | 0 | 500 | 5 | | 12V | 250 | Maxim MAX253/845 |
| S3126-5NL | EPC3126-5-LF | Push-Pull | Toroidal | Pri:Aux:S1:S2:S3=1CT:1CT | 0 | 500 | 3.3 | | 5V | 250 | Maxim MAX253/845 |
| S3126-6NL | EPC3126-6-LF | Push-Pull | Toroidal | Pri:Aux:S1:S2:S3=1CT:0.6CT | 0 | 500 | 5 | | 5V | 250 | Maxim MAX253/845 |
| S3126-7NL | EPC3126-7-LF | Push-Pull | Toroidal | Pri:Aux:S1:S2:S3=1CT:1.5CT | 0 | 500 | 5 | | 12V | 250 | Maxim MAX253/845 |
| | | | | | | | | | | |
