EI EP EE EC Small Signal Transformer High Frequency Transformer

Ask Lasest Price
Brand Name :	Shareway
Model Number :
Certification :	CE UL RoHS ISO9001:2008
Price :	Supportive
Payment Terms :	TT,Paypal
Supply Ability :	3000K.PCS/Month
Delivery Time :	Stock or 3 weeks

Add to Cart

Product Details
Company Profile

EI EP EE EC Small Signal Transformer High Frequency Transformer

EI EP EE EC Type High Frequency Small Signal Transformer

ELECTRICAL SPECIFICATIONS @25°C unless otherwise noted:

PARAMETER	TEST CONDITIONS	VALUE
D.C. RESISTANCE 1-2	@20°C	0.092 ohms max
D.C. RESISTANCE 3-5	@20°C	0.036ohms max
D.C. RESISTANCE 6-9	tie(6+7,9+10),@20°C	0.007 ohms max
INDUCTANCE 3-5	10KHz,100mVAC,Ls	9/07uH min.
SATURATION CURRENT	20% rolloff from initial	8A
LEAKAGE INDUCTANCE 3-5	tie(1+2,6+7+9+10),100KHz,10mVAC,Ls	120nH typ.250nH max
DIELECTRIC 1-9	tie(2+3,6+7),1875VAC,1 second	1500VAC,1minute
DIELECTRIC 1-5	625VAC,1 second	500VAC,1minute
TURNS RATIO	(3-5):(2-1)	71.714:1±2%
TURNS RATIO	(3-5):(6-9),tie(6+7,9+10)	3:1±2%

GENERAL SPECIFICATIONS:

OPERATING TEMPERATURE RANGE: -40°C TO +125°C , including temp rise.

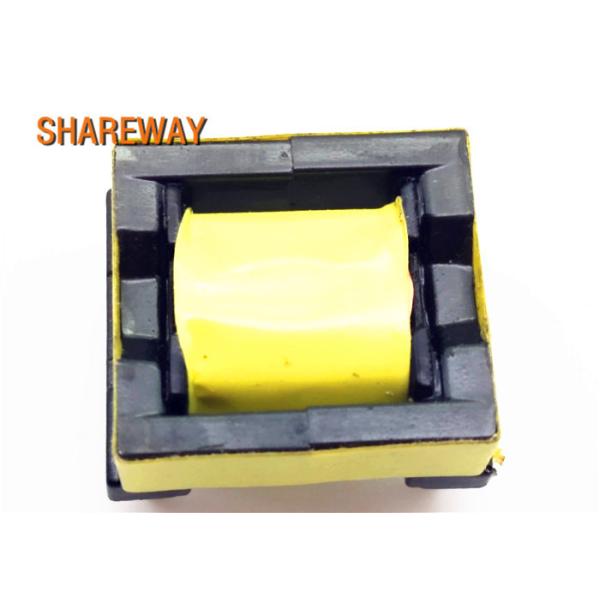

Product Picture:

EI EP EE EC Type High Frequency Small Signal Transformer

HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
