Shareway Ultra-Low Loss Magnetically Shielded Power Inductors
XEL3520
Features
Low inductance values for high-frequency applications.
Very low AC losses at high frequency and very low DCR.
Soft saturation to withstand high current spikes.
Magnetically shielded to minimize EMI.
Composite construction minimizes audible buzzing.
No thermal aging – perfect for high-temperature applications.
AEC-Q200 Grade 1 (−40°C to +125°C) with a 165°C max part
temperature.
Electrical Specification
Inductance ±20% Tolerance | DCR (Typ) | DCR (Max) | SRF (Typ) | Isat (10% drop) | Isat (20% drop) | Isat (30% drop) | Irms (20°C rise) | Irms (40°C rise) |
| 70 nH | 2.5 mΩ | 2.9 mΩ | 471 MHz | 9.7 A | 13.0 A | 18.5 A | 19.8 A | 27.2 A |
| 130 nH | 3.5 mΩ | 4.1 mΩ | 294 MHz | 7.2 A | 9.8 A | 13.8 A | 18.9 A | 25.4 A |
| 200 nH | 4.9 mΩ | 5.7 mΩ | 227 MHz | 5.7 A | 8.6 A | 11.8 A | 14.8 A | 19.9 A |
| 330 nH | 8.0 mΩ | 9.2 mΩ | 158 MHz | 3.9 A | 6.2 A | 8.7 A | 10.3 A | 13.7 A |
| 470 nH | 9.4 mΩ | 10.9 mΩ | 135 MHz | 3.7 A | 5.7 A | 8.0 A | 9.2 A | 12.1 A |
| 560 nH | 14.5 mΩ | 16.7 mΩ | 129 MHz | 3.3 A | 5.4 A | 7.3 A | 7.6 A | 10.1 A |
| 800 nH | 20.5 mΩ | 23.6 mΩ | 94 MHz | 2.5 A | 4.0 A | 5.6 A | 6.3 A | 8.3 A |
| 1.1μH | 31.5 mΩ | 36.3 mΩ | 80 MHz | 2.2 A | 3.5 A | 5.0 A | 4.0 A | 5.4 A |
| 1.2μH | 35.0 mΩ | 40.3 mΩ | 70 MHz | 2.0 A | 3.2 A | 4.8 A | 3.8 A | 5.2 A |
Drawing & Dimension

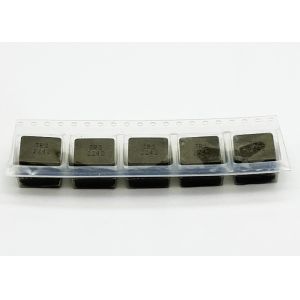

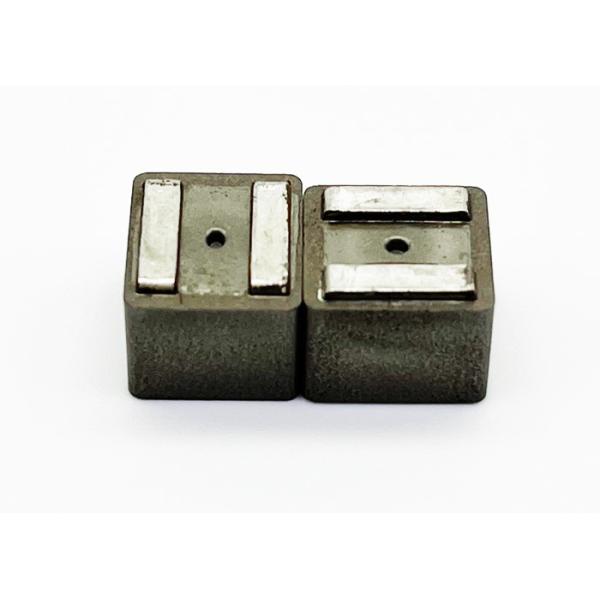

Product Picture
